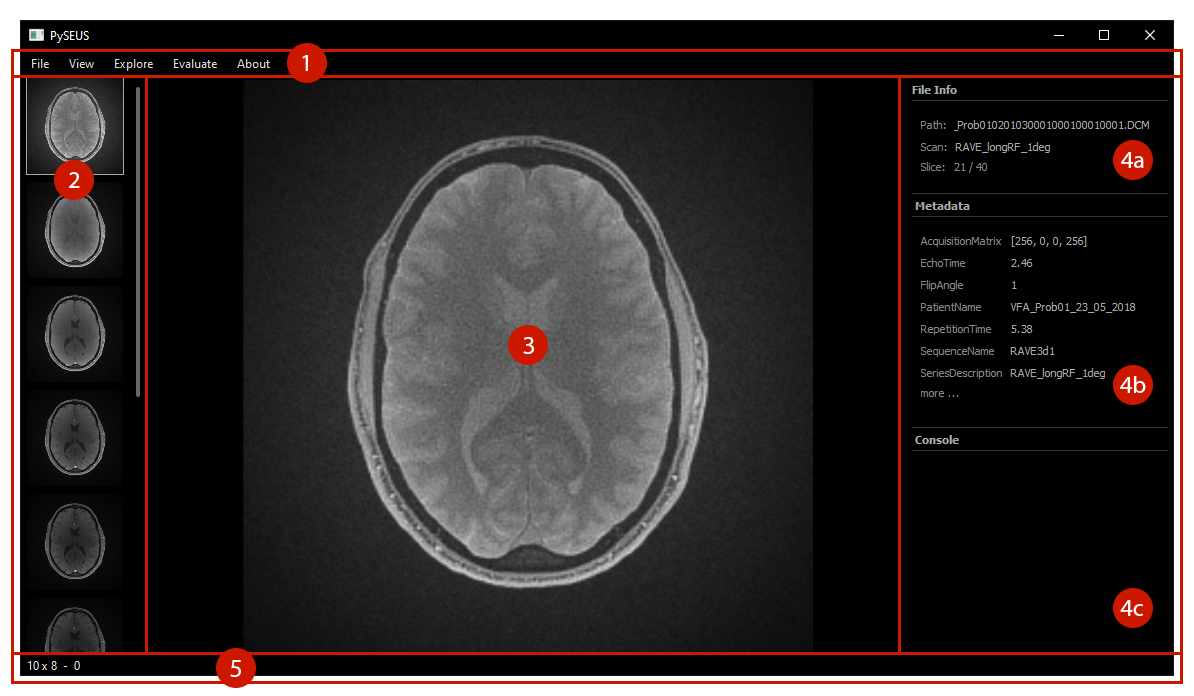

Interface

(1) Menu bar: The menu bar at the top allows access to all functions. See File for the File menu, Navigation for the View and Explore menus, Evaluate for the Tools menu and Process for the Process.

(2) Thumbnails: For datasets with multiple scans, thumbnails of each scan are dispalyed on the left. Clicking on a thumbnail will load the scan.

(3) Viewport: The viewport in the center displays the current slice. See Navigation for how to adjust the viewport.

(4) Sidebar: The Sidebar collects various kinds of information.

(4a) File info: Basic information about the current dataset is displayed at the top. This contains the dataset path, the current scan and the current slice.

(4b) Metadata: If a dataset contains metadata, the most common items are displayed here. Clicking on more at the bottom will bring up a window with all available metadata.

(4c) Console: Generic text output (like from the area tool) is displayed here.

(5) Status bar: The status bar at the bottom provides contextual information. While hovering over the image viewport, the coordinates and value of the pixel under the cursor are displayed.
